In a previous post I wrote about my Raspberry Pi experiment to have the SenseHat display a scrolling message 10 minutes before game time.

One of the things I have wanted to do since then is have Vin Scully’s voice come from a speaker and say those five magical words, It's time for Dodger Baseball!

I found a clip of Vin on Youtube saying that (and a little more). I wasn’t sure how to get the audio from that YouTube clip though.

After a bit of googling¹ I found a command line tool called youtube-dl. The tool allowed me to download the video as an mp4 with one simple command:

youtube-dl https://www.youtube.com/watch?v=4KwFuGtGU6c

Once the mp4 was downloaded I needed to extract the audio from the mp4 file. Fortunately, ffmpeg is a tool for just this type of exercise!

I modified this answer from StackOverflow to meet my needs

ffmpeg -i dodger_baseball.mp4 -ss 00:00:10 -t 00:00:9.0 -q:a 0 -vn -acodec copy dodger_baseball.aac

This got me an aac file, but I was going to need an mp3 to use in my Python script.

Next, I used a modified version of this suggestion to create write my own command

ffmpeg -i dodger_baseball.aac -c:a libmp3lame -ac 2 -b:a 190k dodger_baseball.mp3

I could have probably combined these two steps, but … meh.

OK. Now I have the famous Vin Scully saying the best five words on the planet.

All that’s left to do is update the python script to play it. Using guidance from here I updated my itfdb.py file from this:

if month_diff == 0 and day_diff == 0 and hour_diff == 0 and 0 >= minute_diff >= -10:
   message = '#ITFDB!!! The Dodgers will be playing {} at {}'.format(game.game_opponent, game.game_time)
   sense.show_message(message, scroll_speed=0.05)

To this:

if month_diff == 0 and day_diff == 0 and hour_diff == 0 and 0 >= minute_diff >= -10:
   message = '#ITFDB!!! The Dodgers will be playing {} at {}'.format(game.game_opponent, game.game_time)
   sense.show_message(message, scroll_speed=0.05)
   os.system("omxplayer -b /home/pi/Documents/python_projects/itfdb/dodger_baseball.mp3")

However, what that does is play Vin’s silky smooth voice every minute for 10 minutes before game time. Music to my ears but my daughter was not a fan, and even my wife who LOVES Vin asked me to change it.

One final tweak, and now it only plays at 5 minutes before game time and 1 minute before game time:

if month_diff == 0 and day_diff == 0 and hour_diff == 0 and 0 >= minute_diff >= -10:
   message = '#ITFDB!!! The Dodgers will be playing {} at {}'.format(game.game_opponent, game.game_time)
   sense.show_message(message, scroll_speed=0.05)

if month_diff == 0 and day_diff == 0 and hour_diff == 0 and (minute_diff == -1 or minute_diff == -5):
   os.system("omxplayer -b /home/pi/Documents/python_projects/itfdb/dodger_baseball.mp3")

Now, for the rest of the season, even though Vin isn’t calling the games, I’ll get to hear his voice letting me know, “It’s Time for Dodger Baseball!!!”

1. Actually, it was an embarrassing amount ↩︎

Posted by ryan on Thu 15 March 2018

In my last post I indicated that I may need to

reinstalling everything on the Pi and starting from scratch

While speaking about my issues with pip3 and python3. Turns out that the fix was easier than I though. I checked to see what where pip3 and python3 where being executed from by running the which command.

The which pip3 returned /usr/local/bin/pip3 while which python3 returned /usr/local/bin/python3. This is exactly what was causing my problem.

To verify what version of python was running, I checked python3 --version and it returned 3.6.0.

To fix it I just ran these commands to unlink the new, broken versions:

sudo unlink /usr/local/bin/pip3

And

sudo unlink /usr/local/bin/python3

I found this answer on StackOverflow and tweaked it slightly for my needs.

Now, when I run python --version I get 3.4.2 instead of 3.6.0

Unfortunately I didn’t think to run the --version flag on pip before and after the change, and I’m hesitant to do it now as it’s back to working.

Posted by ryan on Tue 13 February 2018

My wife and I love baseball season. Specifically we love the Dodgers and we can’t wait for Spring Training to begin. In fact, today pitchers and catchers report!

I’ve wanted to do something with the Raspberry Pi Sense Hat that I got (since I got it) but I’ve struggled to find anything useful. And then I remembered baseball season and I thought, ‘Hey, what if I wrote something to have the Sense Hat say “#ITFDB” starting 10 minutes before a Dodgers game started?’

And so I did!

The script itself is relatively straight forward. It reads a csv file and checks to see if the current time in California is within 10 minutes of start time of the game. If it is, then it will send a show_message command to the Sense Hat.

I also wrote a cron job to run the script every minute so that I get a beautiful scrolling bit of text every minute before the Dodgers start!

The code can be found on my GitHub page in the itfdb repository. There are 3 files:

1. Program.py which does the actual running of the script
2. data_types.py which defines a class used in Program.py
3. schedule.csv which is the schedule of the games for 2018 as a csv file.

I ran into a couple of issues along the way. First, my development environment on my Mac Book Pro was Python 3.6.4 while the Production Environment on the Raspberry Pi was 3.4. This made it so that the code about time ran locally but not on the server 🤦‍♂️.

It took some playing with the code, but I was finally able to go from this (which worked on 3.6 but not on 3.4):

now = utc_now.astimezone(pytz.timezone("America/Los_Angeles"))
game_date_time = game_date_time.astimezone(pytz.timezone("America/Los_Angeles"))

To this which worked on both:

local_tz = pytz.timezone('America/Los_Angeles')
now = utc_now.astimezone(local_tz)
game_date_time = local_tz.localize(game_date_time)

For both, the game_date_time variable setting was done in a for loop.

Another issue I ran into was being able to display the message for the sense hat on my Mac Book Pro. I wasn’t ever able to because of a package that is missing (RTIMU ) and is apparently only available on Raspbian (the OS on the Pi).

Finally, in my attempts to get the code I wrote locally to work on the Pi I decided to install Python 3.6.0 on the Pi (while 3.4 was installed) and seemed to do nothing but break pip. It looks like I’ll be learning how to uninstall Python 3.4 OR reinstalling everything on the Pi and starting from scratch. Oh well … at least it’s just a Pi and not a real server.

Although, I’m pretty sure I hosed my Linode server a while back and basically did the same thing so maybe it’s just what I do with servers when I’m learning.

One final thing. While sitting in the living room watching DC Legends of Tomorrow the Sense Hat started to display the message. Turns out, I was accounting for the minute, hour, and day but NOT the month. The Dodgers play the Cubs on September 12 at 9:35 (according to the schedule.csv file anyway) and so the conditions to display were met.

I added another condition to make sure it was the right month and now we’re good to go!

Super pumped for this season with the Dodgers!

Posted by ryan on Tue 13 February 2018

In my last post I wrote out the steps that I was going to use to turn a ton of .h264 files into one mp4 file with the use of MP4Box.

Before outlining my steps I said, “The method below works but I’m sure that there is a better way to do it.”

Shortly after posting that I decided to find that better way. Turns out, ~~it wasn’t really that much more work~~ it was much harder than originally thought.

The command below is a single line and it will create a text file (com.txt) and then execute it as a bash script:

~~(echo '#!/bin/sh'; for i in *.h264; do if [ "$i" -eq 1 ]; then echo -n " -add $i"; else echo -n " -cat $i"; fi; done; echo -n " hummingbird.mp4") > /Desktop/com.txt | chmod +x /Desktop/com.txt | ~/Desktop/com.txt~~

(echo '#!/bin/sh'; echo -n "MP4Box"; array=($(ls *.h264)); for index in ${!array[@]}; do if [ "$index" -eq 1 ]; then echo -n " -add ${array[index]}"; else echo -n " -cat ${array[index]}"; fi; done; echo -n " hummingbird.mp4") > com.txt | chmod +x com.txt

Next you execute the script with

./com.txt

OK, but what is it doing? The parentheses surround a set of echo commands that output to com.txt. I’m using a for loop with an if statement. The reason I can’t do a straight for loop is because the first h264 file used in MP4Box needs to have the -add flag while all of the others need the -cat flag.

Once the file is output to the com.txt file (on the Desktop) I pipe it to the chmod +x command to change it’s mode to make it executable.

Finally, I pipe that to a command to run the file ~/Desktop/com.txt

I was pretty stoked when I figured it out and was able to get it to run.

The next step will be to use it for the hundreds of h264 files that will be output from my hummingbird camera that I just installed today.

I’ll have a post on that in the next couple of days.

Posted by ryan on Sat 10 February 2018

The general form of the concatenate command for MP4Box is:

MP4Box -add <filename>.ext -cat <filename>.ext output.ext¹

When you have more than a couple of output files, you’re going to want to automate that -cat part as much as possible because let’s face it, writing out that statement even more than a couple of times will get really old really fast.

The method below works but I’m sure that there is a better way to do it.

1. echo out the command you want to run. In this case:

(echo -n "MP4Box "; for i in *.h264; do echo -n " -cat $i"; done; echo -n " hummingbird.mp4") >> com.txt

1. Edit the file com.txt created in (1) so that you can change the first -cat to -add

vim com.txt

1. While still in vim editing the com.txt file add the #!/bin/sh to the first line. When finished, exit vim²
2. Change the mode of the file so it can run

chmod +x com.txt

1. Run the file:

./com.txt

Why am I doing all of this? I have a Raspberry Pi with a Camera attachment and a motion sensor. I’d like to watch the hummingbirds that come to my hummingbird feeder with it for a day or two and get some sweet video. We’ll see how it goes.

1. The -add will add the \<filename> to the output file while the -cat will add any other files to the output file (all while not overwriting the output file so that the files all get streamed together). ↩︎
2. I’m sure there’s an xkcd comic about this, but I just can’t find it! ↩︎

Posted by ryan on Thu 08 February 2018

I’d discovered a python package called osmnx which will take GIS data and allow you to draw maps using python. Pretty cool, but I wasn’t sure what I was going to do with it.

After a bit of playing around with it I finally decided that I could make some pretty cool Fractures.

I’ve got lots of Fracture images in my house and I even turned my diplomas into Fractures to hang up on the wall at my office, but I hadn’t tried to make anything like this before.

I needed to figure out what locations I was going to do. I decided that I wanted to do 9 of them so that I could create a 3 x 3 grid of these maps.

I selected 9 cities that were important to me and my family for various reasons.

Next writing the code. The script is 54 lines of code and doesn’t really adhere to PEP8 but that just gives me a chance to do some reformatting / refactoring later on.

In order to get the desired output I needed several libraries:

osmnx (as I’d mentioned before)
matplotlib.pyplot
numpy
PIL

If you’ve never used PIL before it’s the ‘Python Image Library’ and according to it’s home page it

adds image processing capabilities to your Python interpreter. This library supports many file formats, and provides powerful image processing and graphics capabilities.

OK, let’s import some libraries!

import osmnx as ox, geopandas as gpd, os
import matplotlib.pyplot as plt
import numpy as np
from PIL import Image
from PIL import ImageFont
from PIL import ImageDraw

Next, we establish the configurations:

ox.config(log_file=True, log_console=False, use_cache=True)

The ox.config allows you to specify several options. In this case, I’m:

1. Specifying that the logs be saved to a file in the log directory
2. Suppress the output of the log file to the console (this is helpful to have set to True when you’re first running the script to see what, if any, errors you have.
3. The use_chache=True will use a local cache to save/retrieve http responses instead of calling API repetitively for the same request URL

This option will help performance if you have the run the script more than once.

OSMX has many different options to generate maps. I played around with the options and found that the walking network within 750 meters of my address gave me the most interesting lines.

AddressDistance = 750
AddressDistanceType = 'network'
AddressNetworkType = 'walk'

Now comes some of the most important decisions (and code!). Since I’ll be making this into a printed image I want to make sure that the image and resulting file will be of a high enough quality to render good results. I also want to start with a white background (although a black background might have been kind of cool). I also want to have a high DPI. Taking these needs into consideration I set my plot variables:

PlotBackgroundColor = '#ffffff'
PlotNodeSize = 0
PlotFigureHeight = 40
PlotFigureWidth = 40
PlotFileType = 'png'
PlotDPI = 300
PlotEdgeLineWidth = 10.0

I played with the PlotEdgeLineWidth a bit until I got a result that I liked. It controls how thick the route lines are and is influenced by the PlotDPI. For the look I was going for 10.0 worked out well for me. I’m not sure if that means a 30:1 ratio for PlotDPI to PlotEdgeLineWidth would be universal but if you like what you see then it’s a good place to start.

One final piece was deciding on the landmarks that I was going to use. I picked nine places that my family and I had been to together and used addresses that were either of the places that we stayed at (usually hotels) OR major landmarks in the areas that we stayed. Nothing special here, just a text file with one location per line set up as

Address, City, State

For example:

1234 Main Street, Anytown, CA

So we just read that file into memory:

landmarks = open('/Users/Ryan/Dropbox/Ryan/Python/landmarks.txt', 'r')

Next we set up some scaffolding so we can loop through the data effectively

landmarks = landmarks.readlines()
landmarks = [item.rstrip() for item in landmarks]

fill = (0,0,0,0)

city = []

The loop below is doing a couple of things:

1. Splits the landmarks array into base elements by breaking it apart at the commas (I can do this because of the way that the addresses were entered. Changes may be needed to account for my complex addresses (i.e. those with multiple address lines (suite numbers, etc) or if local addresses aren’t constructed in the same way that US addresses are)
2. Appends the second and third elements of the parts array and replaces the space between them with an underscore to convert Anytown, CA to Anytown_CA

<!-- -->

for element in landmarks:
    parts = element.split(',')
    city.append(parts[1].replace(' ', '', 1)+'_'+parts[2].replace(' ', ''))

This next line isn’t strictly necessary as it could just live in the loop, but it was helpful for me when writing to see what was going on. We want to know how many items are in the landmarks

rows = len(landmarks)

Now to loop through it. A couple of things of note:

The package includes several graph_from_... functions. They take as input some type, like address, i.e. graph_from_address (which is what I’m using) and have several keyword arguments.

In the code below I’m using the ith landmarks item and setting the distance, distance_type, network_type and specifying an option to make the map simple by setting simplify=‘true’

To add some visual interest to the map I’m using this line

ec = ['#cc0000' if data['length'] >=100 else '#3366cc' for u, v, key, data in G.edges(keys=True, data=True)]

If the length of the part of the map is longer than 100m then the color is displayed as #cc0000 (red) otherwise it will be #3366cc (blue)

The plot_graph is what does the heavy lifting to generate the image. It takes as input the output from the graph_from_address and ec to identify what and how the map will look.

Next we use the PIL library to add text to the image. It takes into memory the image file and saves out to a directory called /images/. My favorite part of this library is that I can choose what font I want to use (whether it’s part of the system fonts or a custom user font) and the size of the font. For my project I used San Francisco at 512.

Finally, there is an exception for the code that adds text. The reason for this is that when I was playing with adding text to the image I found that for 8 of 9 maps having the text in the upper left hand corner worker really well. It was just that last one (San Luis Obispo, CA) that didn’t.

So, instead of trying to find a different landmark, I decided to take a bit of artistic license and put the San Luis Obispo text in the upper right hard corner.

Once the script is all set simply typing python MapProject.py in my terminal window from the directory where the file is saved generated the files.

All I had to do what wait and the images were saved to my /images/ directory.

Next, upload to Fracture and order the glass images!

I received the images and was super excited. However, upon opening the box and looking at them I noticed something wasn’t quite right

[caption id="attachment_188" align="alignnone" width="2376"]![Napa with the text slightly off the image]images/uploads/2018/01/Image-12-16-17-6-55-AM.jpeg){.alignnone .size-full .wp-image-188 width="2376" height="2327"} Napa with the text slightly off the image[/caption]

As you can see, the name place is cut off on the left. Bummer.

No reason to fret though! Fracture has a 100% satisfaction guarantee. So I emailed support and explained the situation.

Within a couple of days I had my bright and shiny fractures to hang on my wall

[caption id="attachment_187" align="alignnone" width="2138"]![Napa with the text properly displaying]images/uploads/2018/01/IMG_9079.jpg){.alignnone .size-full .wp-image-187 width="2138" height="2138"} Napa with the text properly displaying[/caption]

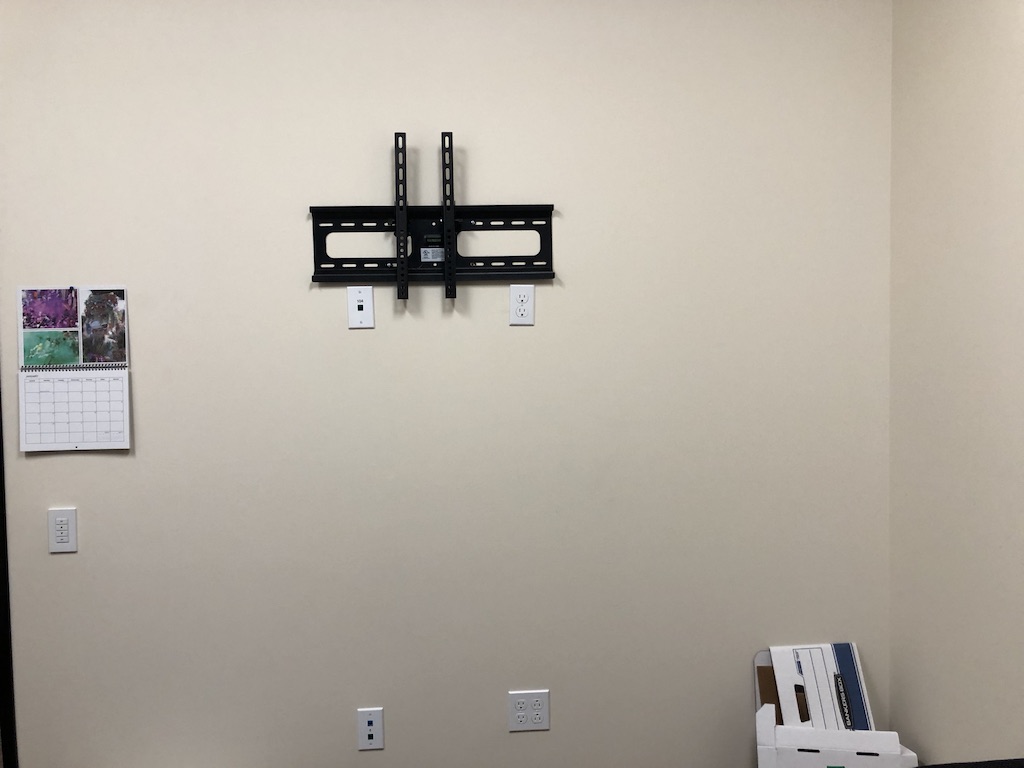

So that my office wall is no longer blank and boring:

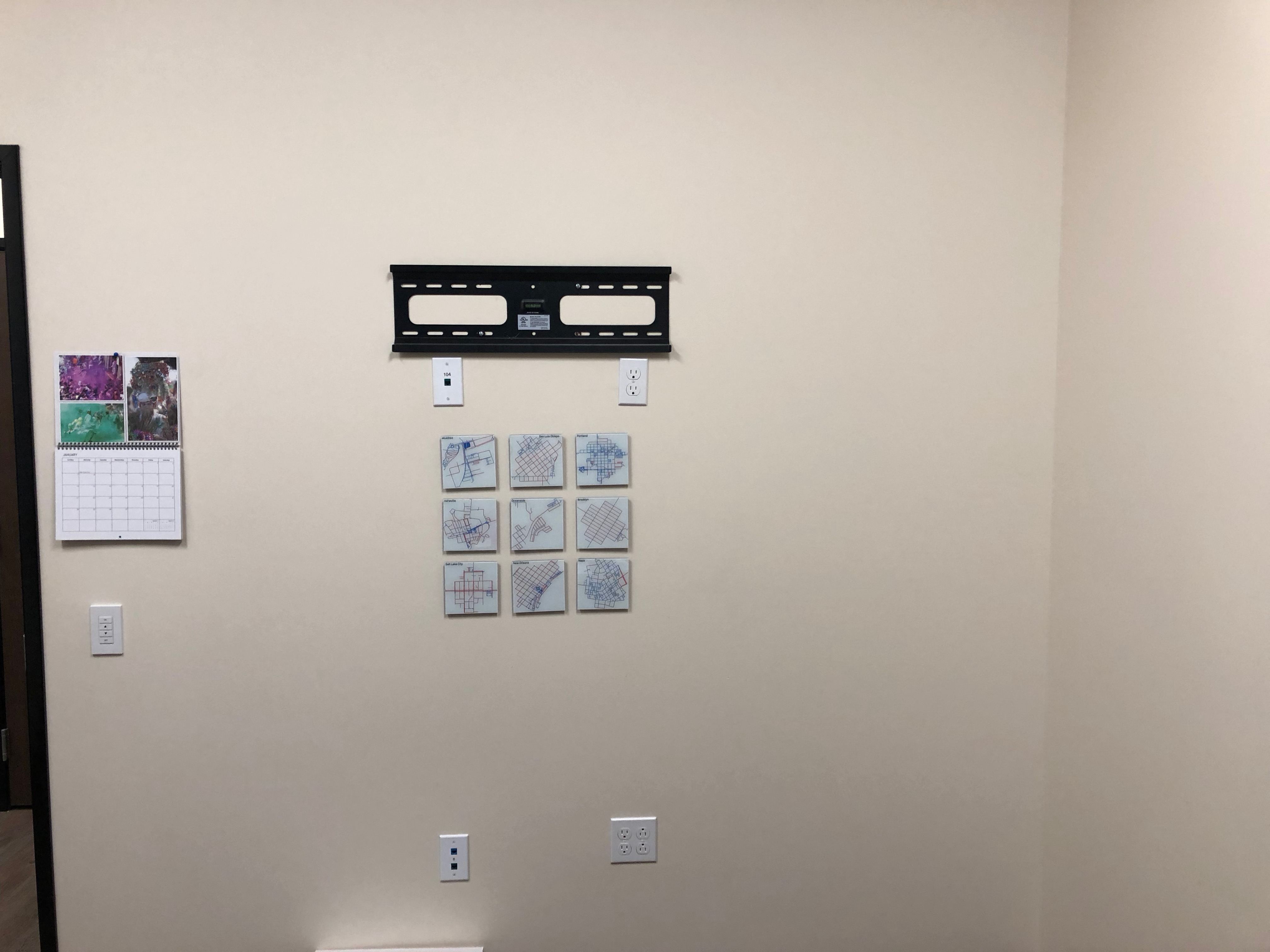

but interesting and fun to look at

Posted by ryan on Fri 12 January 2018

For Christmas I bought myself a 2017 13-inch MacBook Pro with Touch Bar. Several bonuses were associated with the purchase:

1. A \$150 Apple Gift Card because I bought the MacBook Pro on Black Friday and Apple had a special going (w00t!)
2. The Credit Card I use to make ALL of my purchases at Apple has a 3% cash back (in the form of iTunes cards)
3. A free 30 minute online / phone session with an ‘Apple Specialist’

Now I didn’t know about item number 3 when I made the purchase, but was greeted with an email informing me of my great luck.

This is my fifth Mac¹ and I don’t remember ever getting this kind of service before. So I figured, what the hell and decided to snooze the email until the day after Christmas to remind myself to sign up for the session.

When I entered the session I was asked to optionally provide some information about myself. I indicated that I had been using a Mac for several years and considered myself an intermediate user.

My Apple ‘Specialist’ was Jaime. She confirmed the optional notes that I entered and we were off to the races.

Now a lot of what she told me about Safari (blocking creepy tracking behavior, ability to mute sound from auto play videos, default site to display in reader view) I knew from the WWDC Keynote that I watched back in June, but I listened just in case I had missed something from that session (or the 10s / 100s of hours of podcasts I listened to about the Keynote).

One thing that I had heard about was the ability to pin tabs in Safari. I never really knew what that meant and figured it wasn’t anything that I needed.

I was wrong. Holy crap is pinning tabs in Safari a useful feature! I can keep all of my most used sites pinned and get to them really quickly and they get auto refreshed! Sweet!

The other super useful thing I found out about was the Split Screen feature that allows you to split apps on your screen (in a very iOS-y way!).

Finally, Jaime reviewed how to customize the touch bar! This one was super useful as I think there are 2 discoverability issues with it:

1. The option to Customize Touch Bar is hidden in the View menu which isn’t somewhere I’d look for it
2. To Customize the Touch Bar you drag down from the Main Screen onto the Touch Bar.

After the call I received a nice follow up email from Apple / Jaime

Now that you're more familiar with your new Mac, here are some additional resources that can help you go further.

Apple Support Find answers to common questions, watch video tutorials, download user guides, and share solutions with the Apple community. Visit Support

Today at Apple Discover inspiring programs happening near you. Visit Today at Apple

Accessories From the Apple accessories page, you can learn about all kinds of new and innovative products that work with iPhone, iPad, Mac and more. Visit Accessories

How to use the Touch Bar on your MacBook Pro - https://support.apple.com/en- us/HT207055

Use Mission Control on your Mac - https://support.apple.com/en- us/HT204100

Use two Mac apps side by side in Split View - https://support.apple.com/en- us/HT204948

Websites preferences - https://support.apple.com/ guide/safari/websites- preferences-ibrwe2159f50

I’m glad that I had the Mac session and I will encourage anyone that buys a Mac in the future to schedule one.

1. They are in order of purchase: 2012 15-inch MacBook Pro, 2014 27-inch 5K iMac, 2015 MacBook, 2016 13-inch 2 Thunderbolt MacBook Pro; 2017 13-inch MacBook Pro with Touch Bar ↩︎

Posted by ryan on Wed 27 December 2017

When I scheduled my last post on December 14th to be published at 6pm that night I noticed that the schedule time was a bit … off:

I realized that the server times as still set to GMT and that I had missed the step in the Linode Getting Started guide to Set the Timezone.

No problem, just found the Guide, went to this section and ran the following command:

sudo dpkg-reconfigure tzdata

I then selected my country (US) and my time zone (Pacific-Ocean) and now the server has the right timezone.

Posted by ryan on Fri 15 December 2017

I’ve written about my migration from Squarespace to Wordpress earlier this year. One thing I lost with that migration when I went to Wordpress in AWS was having SSL available. While I’m sure Van Hoet will “well actually” me on this, I never could figure out how to set it up ( not that I tried particularly hard ).

The thing is now that I’m hosting on Linode I’m finding some really useful tutorials. This one showed me exactly what I needed to do to get it set up.

Like any good planner I read the how to several times and convinced myself that it was actually relatively straight forward to do and so I started.

Step 1 Creating the cert files

Using this tutorialI was able to create the required certificates to set up SSL. Of course, I ran into an issue when trying to run this command

chmod 400 /etc/ssl/private/example.com.key

I did not have persmision to chmod on that file. After a bit of Googling I found that I can switch to interactive root mode by running the command

sudo -i

It feels a bit dangerous to be able to just do that (I didn’t have to enter a password) but it worked.

Step 2

OK, so the tutorial above got me most(ish) of the way there, but I needed to sign my own certificate. For that I used this tutorial. I followed the directions but kept coming up with an error:

Problem binding to port 443: Could not bind to the IPv4 or IPv6

I rebooted my Linode server. I restarted apache. I googled and I couldn’t find the answer I was looking for.

I wanted to give up, but tried Googling one more time. Finally! An answer so simple it couldn’t work. But then it did.

Stop Apache, run the command to start Apache back up and boom. The error went away and I had a certificate.

However, when I tested the site using SSL LabsI was still getting an error / warning for an untrusted site.

🤦🏻‍♂️

—

OK ... take 2

I nuked my linode host to start over again.

First things first ... we need to needed to secure my server. Next, we need to set up the server as a LAMP and Linode has this tutorial to walk me through the steps of setting it up.

I ran into an issue when I restarted the Apache service and realized that I had set my host name but hadn’t update the hosts file. No problem though. Just fire up vim and make the additional line:

127.0.0.1 milo

Next, I used this tutorial to create a self signed certificate and this to get the SSL to be set up.

One thing that I expected was that it would just work. After doing some more reading what I realized was that a self signed certificate is useful for internal applications. Once I realized this I decided to not redirect to SSL (i.e. part 443) for my site but instead to just use the ssl certificate it post from Ulysses securely.

Why go to all this trouble just too use a third party application to post to a WordPress site? Because Ulysses is an awesome writing app and I love it. If you’re writing and not using it, I’d give it a try. It really is a nice app.

So really, no good reason. Just that. And, I like to figure stuff out.

OK, so Ulysses is great. But why the need for an SSL certificate? Mostly because when I tried to post to Wordpress from Ulysses without any certificates ( self signed or not ) I would get a warning that my traffic was unencrypted and could be snooped. I figured, better safe than sorry.

Now with the ssl cert all I had to do was trust my self signed certificate and I was set¹

1. Mostly. I still needed to specify the domain with www otherwise it didn’t work. ↩︎

Posted by ryan on Fri 15 December 2017

One of the people I follow online, Federico Viticci, is an iOS power user, although I would argue that phrase doesn’t really do him justice. He can make the iPad do things that many people can’t get Macs to do.

Recently he posted an article on a new font he is using in Ulysses and I wanted to give it a try. The article says:

Installing custsom fonts in Ulysses for iOS is easy: go to the GitHub page, download each one, and open them in Ulysses (with the share sheet) to install them.

Simple enough, but it wasn’t clicking for me. I kept thinking I had done something wrong. So I thought I’d write up the steps I used so I wouldn’t forget the next time I need to add a new font.

Downloading the Font

1. Download the font to somewhere you can get it. I chose to save it to iCloud and use the Files app
2. Hit Select in the Files app
3. Click Share
4. Select Open in Ulysses
5. The custom font is now installed and being used.

Checking the Font:

1. Click the ‘A’ in the writing screen (this is the font selector) located in the upper right hand corner of Ulysses

1. Notice that the Current font indicates it’s a custom font (in This case iA Writer Duospace:

Not that hard, but there’s no feedback telling you that you have been successful so I wasn’t sure if I had done it or not.

Posted by ryan on Tue 12 December 2017
